IEC60695 Glow Wire Flammability Temperature Glow Wire Combustion Resistance Tester

Name: IEC60695 Glow Wire Flammability Temperature Glow Wire Combustion Resistance Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F10
Price: 4,500.00 USD
Availability: InStock

Marka Adı:	SKYLINE
Model numarası:	SL-F10
Moq:	1
fiyat:	pazarlık edilebilir
Tedarik Yeteneği:	15 takım/ay

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri:

Çin

Sertifika:

CE, CO, Rosh, Form E, Calibrate Certificate

Ambalaj bilgileri:

standart ihracat paketi

Yetenek temini:

15 takım/ay

Vurgulamak:

IEC60695 glow wire tester

glow wire flammability tester

combustion resistance testing equipment

Ürün Açıklaması

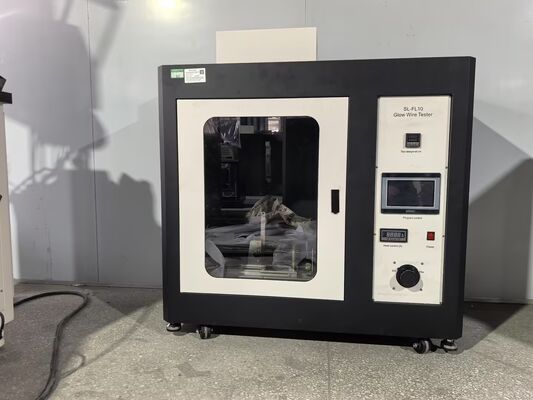

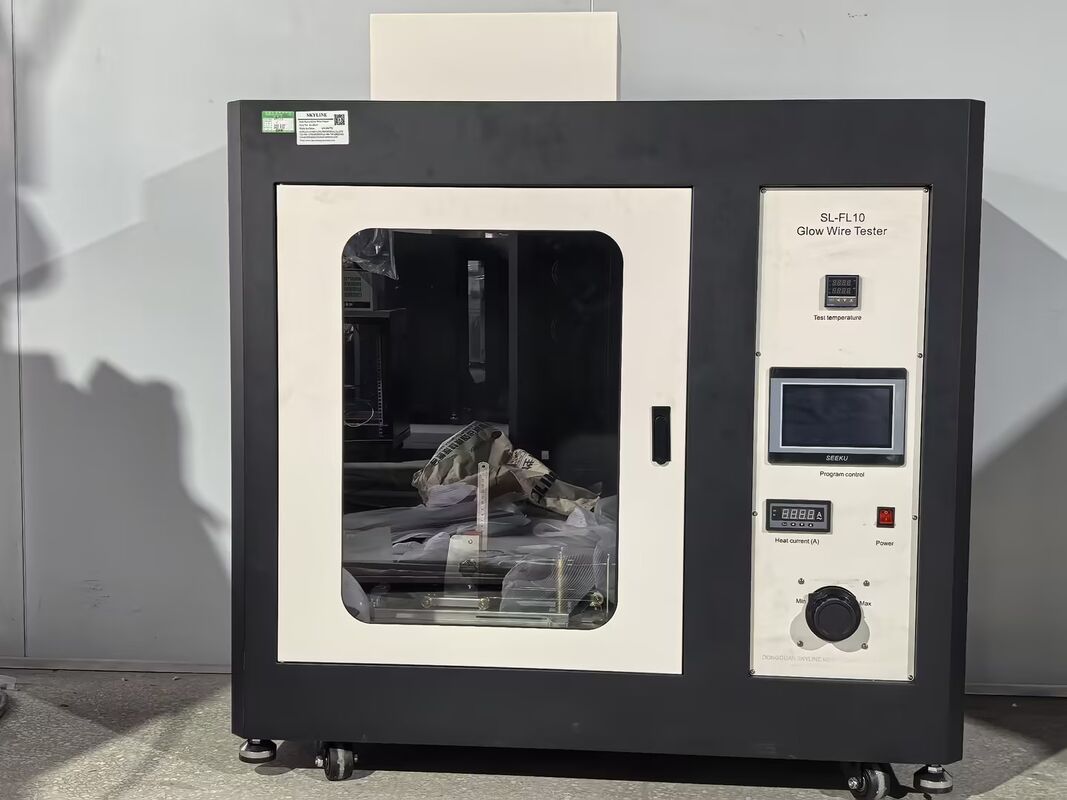

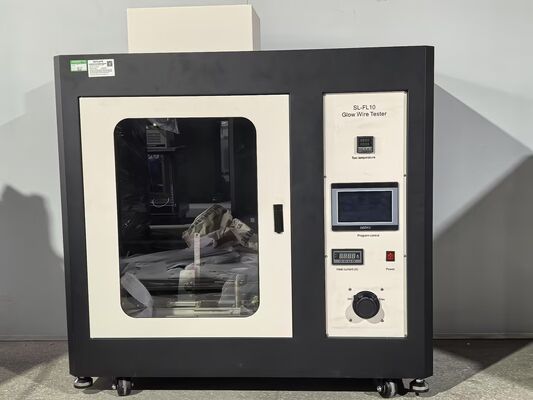

IEC60695 Glow Wire Flammability Temperature Glow Wire Combustion Resistance Tester

This digital electronic testing equipment is designed for glow wire testing according to international standards IEC60695, GB5169.10-11, and GB4706.1. The instrument evaluates ignition hazards in electrical and electronic products, household appliances, and their materials by simulating thermal stress from hot components or overload resistors.

Application Scope

Suitable for fire resistance testing at quality inspection departments and related enterprises, this equipment tests ignition hazards caused by heat sources or ignition sources over short periods.

Key Features

Single-chip microcontroller with touch screen control and high-precision temperature meter
Enhanced anti-interference capability with precise microcomputer control
Seven-inch color touch screen for intuitive operation
Smart 7mm limit adjustment system

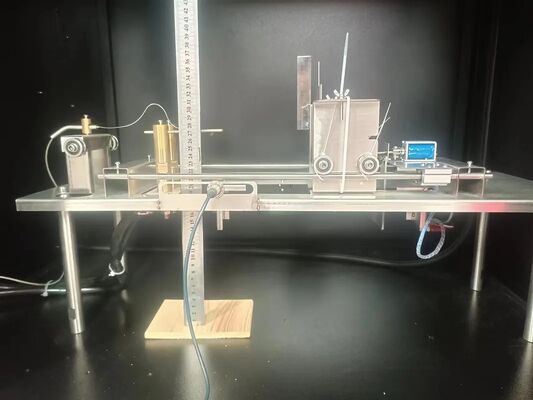

Universal fixture accommodates various sample shapes and sizes
Free movement in X and Z directions for precise sample positioning
One-button operation for complete test process automation
Fully enclosed sample car structure prevents rollover
Integrated flame height gauge for accurate measurement
Automatic data saving and historical data query capabilities

Technical Specifications

Red line photoelectric stop switch for precise limiting
Thyristor-controlled temperature regulation system
Digital display for time and temperature monitoring
Test background: black background with illumination ≤ 20 Lux
Automated test procedures with independent ventilation
Combustion test area: > 0.5 cubic meters (customizable to 0.75 or 1 cubic meter)

Operating Parameters

Working Power Supply	AC220V, 50Hz, ≤500W
Glow Wire Temperature	500~1000°C±2°C continuously adjustable
Hot Time	0-999.9s ± 0.1s adjustable (typically 30s)
Light-off Time	0-999.9s ± 0.1s, automatic recording, manual suspension
Extinguished Time	0-999.9s±0.1s, automatic recording, manual pause
Thermocouple	Φ0.5mm imported armored (K type) thermocouple
Hot Wire	Φ4 mm nickel-chromium wire
Hot Penetration Depth	7mm ± 0.5mm
Sample Pressure	1N ± 0.2N
Test Speed	14mm/s

Physical Dimensions

Overall dimensions: 1160mm (width) × 600mm (depth) × 1310mm (height including feet)

Construction & Design

Built with galvanized sheet cold-rolling electrostatic spraying, this tester features easy operation, stable performance, and efficient testing capabilities. The instrument is designed for reliability and precision in industrial testing environments.
