Name: TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

Ana sayfa Ürünler Laboratuar Test Cihazları

TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	SKYLIE
Sertifika:	CE, Calibration Certificate, Rosh, CO...
Model numarası:	SL-P22

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Ambalaj bilgileri:	İhraç edilen kontrplak paketi
Teslim süresi:	15 iş günü
Ödeme koşulları:	L/C, D/P, D/A, T/T, Western Union, MoneyGram
Yetenek temini:	20-30 /ay

İletişim

Detaylı ürün tanımı

Ölçüm aralığı:	(10 ~ 1000) mN	Test hızı:	1,2 mm/sn
Ölçüm süresi:	15'ler	Çözünürlük:	1 dakika
kesinlik:	±% 1	Prob penetrasyon derinliği:	8 +0,5 mm
Örnek platformu dar genişlik:	5 mm, 6,35 mm, 10 mm, 20 mm	Örnek tablo yarığının her iki tarafında paralellik hatası:	≤0.05mm
Güç kaynağı:	AC 220V ± 22V, 50Hz
Vurgulamak:	10-1000mN Measuring Range Tissue Softness Tester , 1.2mm/s Test Speed TAPPI T498 Test Machine , 15s Measurement Time Softness Testing Equipment

TAPPI T498 Tissue Softness Test Machine

Product Overview

The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.

Key Features

Microcomputer-controlled digital test system with touch screen interface
Bilingual (Chinese/English) operating system with intuitive controls
Advanced technology with reliable performance and easy operation
Ideal for paper manufacturing, scientific research, and quality inspection

Test Principle

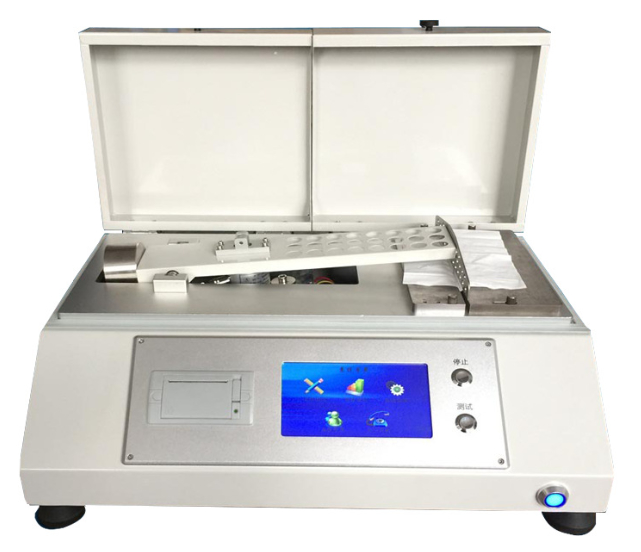

The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.

Compliance Standards

GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3

Technical Specifications

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	5-inch touch screen with curve display (50,000 hour lifespan)
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Wooden outer box with internal buffer material
